The microprocessor control system serves for automatic control of:
- smokehouses
- cooking chambers
- baking chambers
- chilling chambers
- air conditioned units
- boiling kettles
- defrosting units
Optional accessories:
System of data collection, registration and back-up in the working processing
Management of fault conditions, remote control through the LAN, Internet or Ethernet network system
On customer’s request it may be delivered with the control unit as follows:

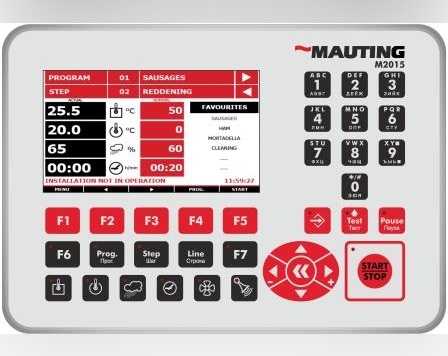

- M2015
- M2016 with Touchscreen

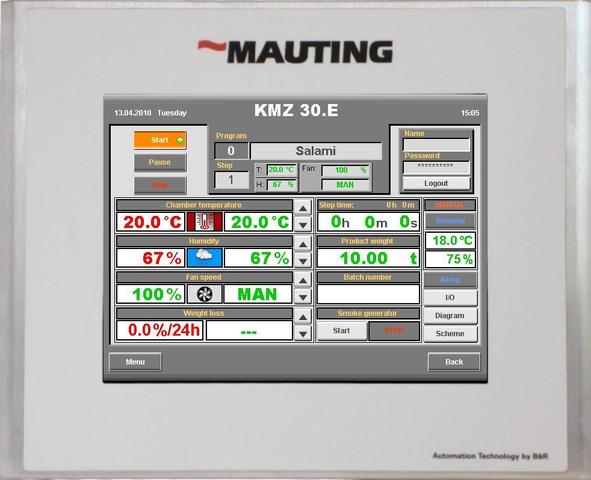

- PLC programmable automat with touchscreen
The control system:
- chamber temperature, relative humidity, catalyser temperature, admission steam quantity in chamber, input quantity of cooling medium into cooling exchanger, cooking according to the “Delta-T” method.
- smoke generator, chamber automatic cleaning process, ventilator speed stage • activate shower, automatic door opening, change-over of smoke flue flaps
- They monitor chamber, product core, catalyser and smoke generator temperature
- They operate the friction smoke generator, liquid smoke applicator and additional equipment

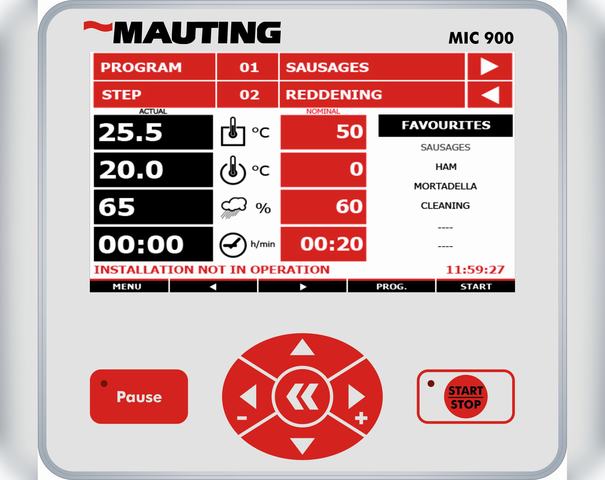

The control unit displays:
- actual and required values of chamber temperature, product core and relative humidity
- running step time or remaining time till the running step end
- name od product and actually running program step
- The control unit enable to store into memory up to 99 programs. Each program can contain 20 steps (phases).
- The control unit is provided with the RS 232 serial interface for connection on PC and data collection and processing of thermal process course as a standard
- Data collection and registration on PC – software upgrade
The program is intended for collection, storing, identification, searching, printing and back up of data relating to course of temperature in the smoking, cooking or intensive chilling process and setting of control unit programs.
Program consist of two parts:
- collecting program of data from the control units of smoking, cooking or intensive chilling chambers and their recording into tables running on the windows background.
- collected data processing program with special sheets for each chamber enabling their subsequent processing.
